Buy 👏 Universal Power Group 24 Volt 5.0 Amp XLR 24BC5000T-4 AGM/Gel Battery Charger ✔️

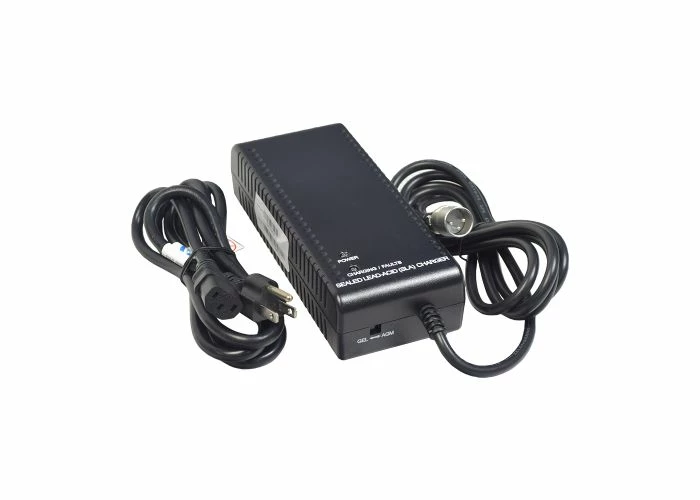

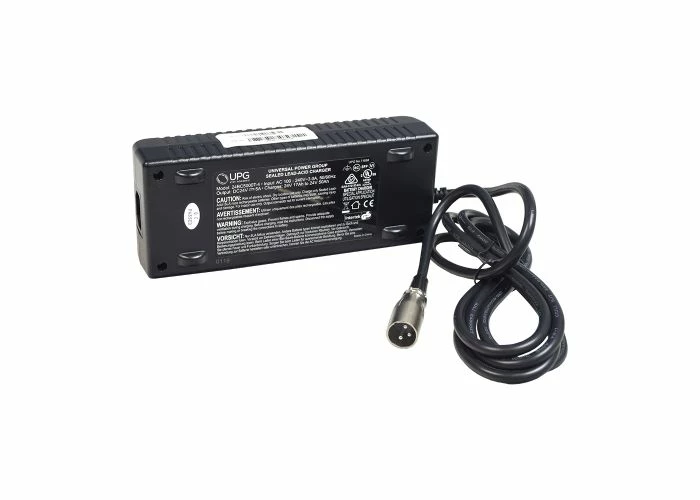

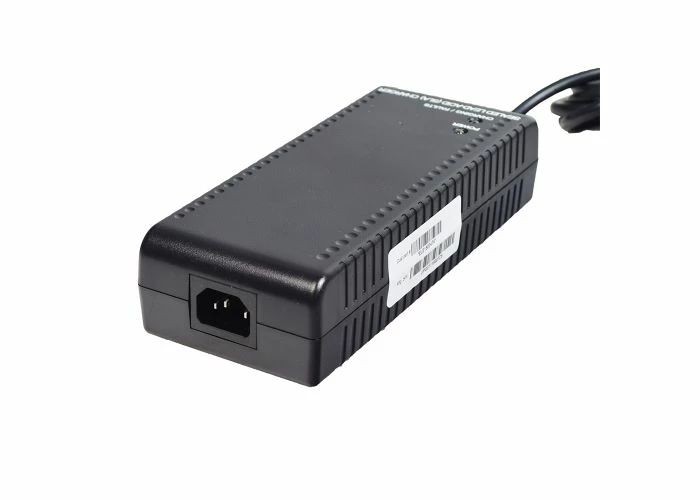

Our 24 volt 5.0 amp XLR connector battery charger from Universal Power Group (UPG) is an excellent way to keep your mobility scooter or power chair fully charged up and ready to go. Unlike most battery chargers, this charger is suitable for use on both standard AGM and Gel cell batteries. A convenient switch on the charger allows you to shift from one to the other.

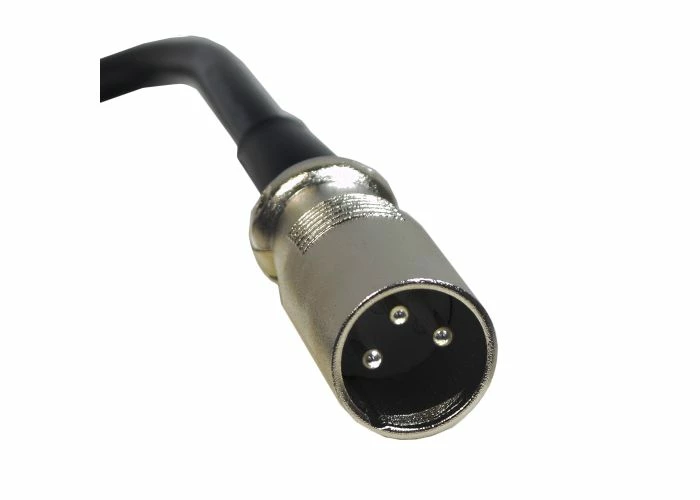

The 24 volt 5.0 amp XLR connector battery charger from UPG is suitable for the 17 Ah batteries or larger that are used on mobility scooters and power chairs equipped with an off-board charging female XLR socket. They use a convenient automatic shut off when the charging cycle is complete. Note that your charging time may vary depending on how depleted or drained down your battery is.

Fully compatible as a replacement for model HP8204B battery charger. Automatic shut off when battery charging is complete. Charging time varies greatly with level of battery depletion.

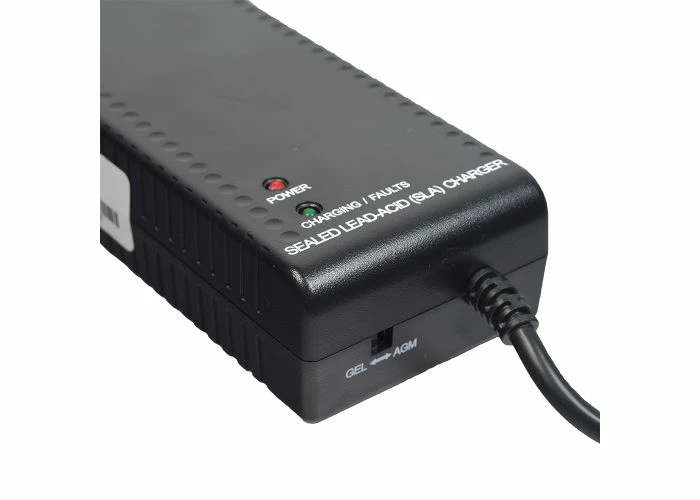

Note: The selector switch must be set to GEL or AGM depending on the battery type to be charged.

• Short Circuit Protection – Prevents damage caused when operating in a short circuit condition for an indefinite period of time. The charger is “self-recovering” when the fault condition is removed.
• Reverse Polarity Protection – Prevents damage when positive and negative polarities are connected in reverse.
• Fully Automatic Operation – Safely charges and maintains a full charge. The final stage of charging is the float mode and the battery may remain connected indefinitely. In this mode, the charger maintains fully charged condition.
• Designed to Prevent Over Charging – Automatically switches to Float Mode.
• Complete 3-Stage Process – Bulk Charge, Absorption, Maintenance/Float.
• Low Voltage Protection – When the battery voltage is below a preset value, the charger will not start charging.
• LED Display – 3 LED displays indicate the charging status: power on, charging, charged.
• Lightweight – Switch mode chargers are very much lighter than linear chargers.

Warranty Information:
Monster Scooter Parts is proud to announce a full 1-year warranty on this battery charger, covering defects in material and workmanship for a period of 1 year (12 months) from the date of receipt. Our full warranty policy can be viewed at the following link:

Monster Scooter Parts Warranty Policy

Please note that the instructions you receive with this battery charger may state “suitable for lead acid batteries only.” Do not be confused by this. AGM and GEL batteries are both forms of sealed “lead acid” batteries. Therefore, this battery charger is fully compatible with both AGM and GEL batteries, although it is optimized for use with AGM batteries.

Note: As a built-in safety feature, the battery charger will not operate if the existing battery has less than 18 volts of power.

⚠ WARNING California Residents: Proposition 65 Warning

Model: 24BC5000T-4
Manufacturer Part Number: 71698
Input Voltage: 100-240 VAC +/- 10%
Input Frequency: 47-63 Hz
Output Voltage Fast Charge (Bulk): DC 29.4V +/- 0.5V

Output Voltage Float: DC 27.4V +/- 0.5V
Output Current: 5.0A (Fast Charge Bulk)
Recommended Battery Capacity: 15-50 Ah
Operating Temperature: +32℉ to +104℉ (0℃ to 40℃)
Storage Temperature: -4℉ to +140℉ (-20℃ to +60℃)

LED Indicators:

RED Power LED on:
AC Power Present

RED Power LED on, RED Charging LED on:

Charging Stage

RED Power LED on, GREEN Charging LED on:

Charging Complete
